Clevermode Test and Tag System

Would it be a bad thing to test and tag with a fast and easy to use printer and have it print out your tags and record all the details for you?

#

Why Clevermode?

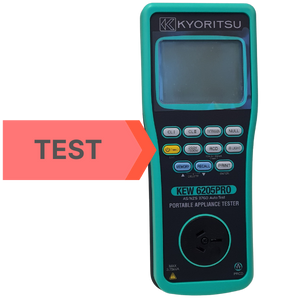

Tester - KEW6205 PRO

  • Simple one button testing
  • Lights up red/green
  • Mains and battery operated

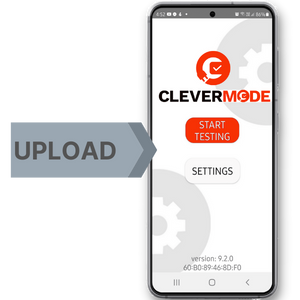

  • Connects to Clevermode APP to instantly upload results.

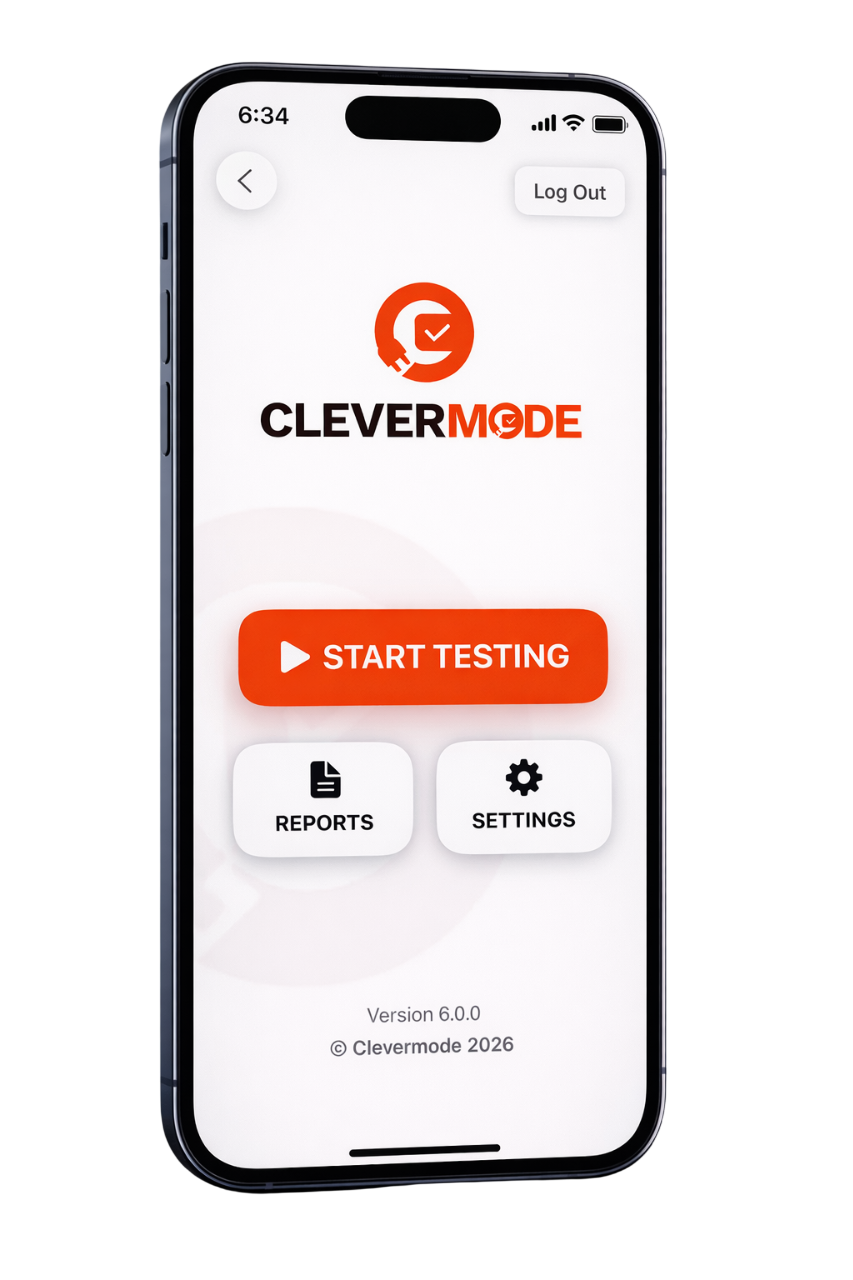

Clevermode APP

  • Connects with tester and printer
  • Records all the data about the item you are testing
  • Scan previous tag bar-codes
  • Produces a CSV spreadsheet

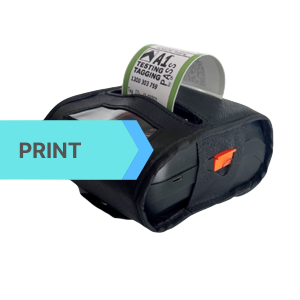

Printer - Clevermode Printer

  • Lightweight, battery operated printer
  • Fast printing tags with your logo
  • Does not need ribbons
  • QR barcode holds all the data.

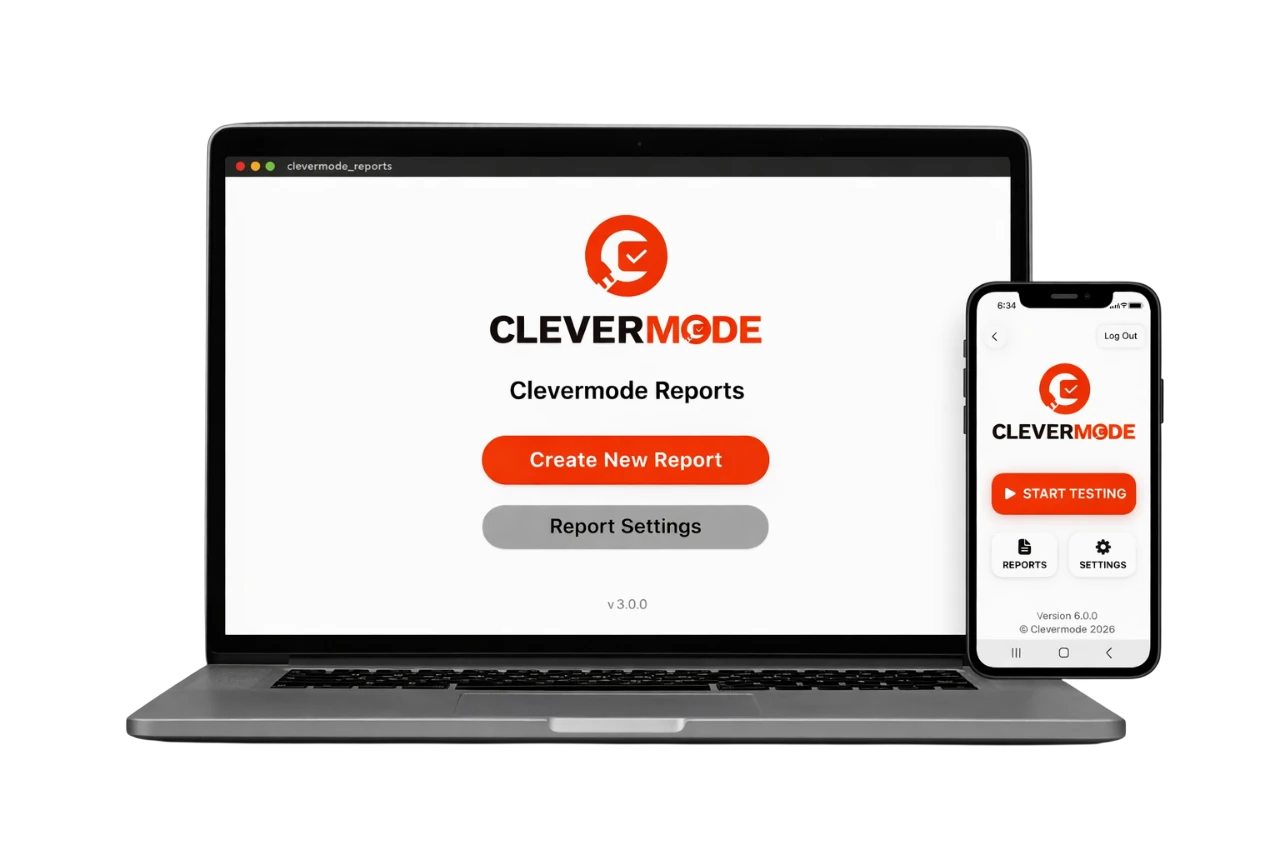

Report Software

  • Convert data into a PDF report
  • Fast to create
  • Simple to use
  • Ready in seconds

Clevermode Support

Clevermode is not hard to use, but if you get stuck setting it up there is an Instruction manual and instructional videos available to teach you how to use it. And if that isn’t enough, of course we are here to help you.

See Clevermode in action .

See how it will revolutionise your testing process.

And that is not all..

Many systems are complicated to use, Clevermode is as simple as it gets.

Works With Any Tester

Clevermode app will work with any tester. What if your tester is away for calibration or worse it gets lost? Clevermode can still record all the items details even if you use a different tester and you can manually write in test results or just leave them as a pass/fail

Stores Multiple Logos

Clevermode app can store multiple logos in the cloud and you can swap your image logos to suit different divisions or if you are working for another contractor or your client requests it. Even better it can be changed on the go straight from your app.

Print Tags For Different Purposes

The Clever Printer prints a selection of tag styles as well as regular tags for most things, you can print small tags for small items like phone chargers, rcd tags that show the trip times, and new to service tags.

Rated To 15Amp

KEW6205PRO is the only tester on the market that is rated to 15Amp and comes with special purpose testing lead. This unit will safely test 15Amp items such as caravan leads and boat cables without blowing fuses or damaging the tester.

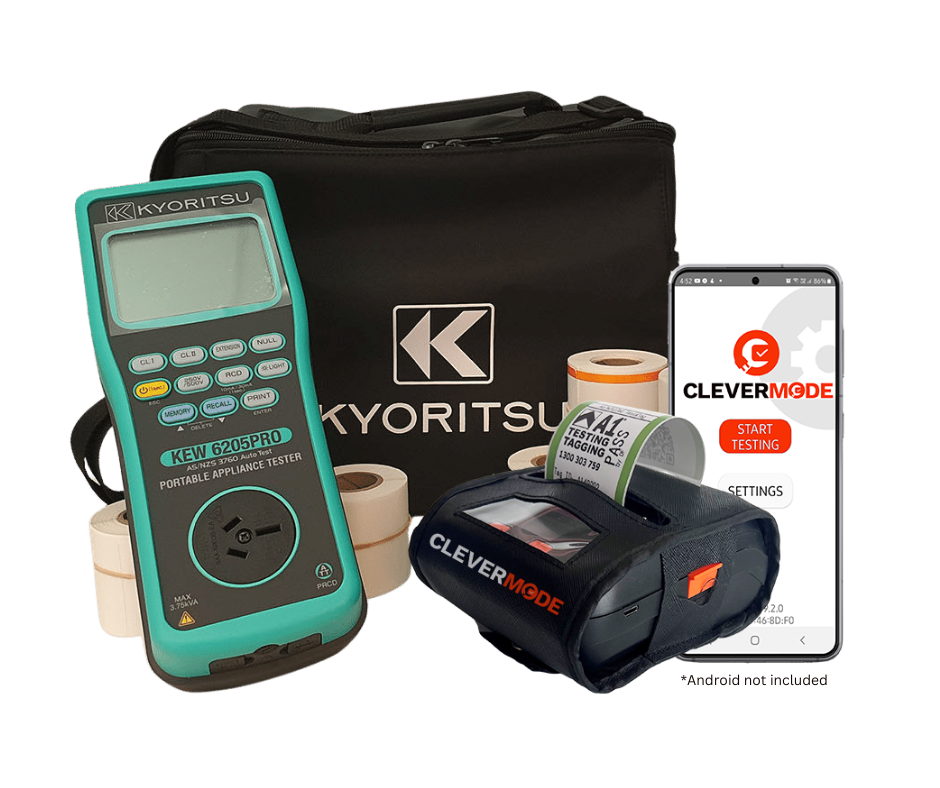

Package Specifications?

The app is a subscription software with an annual subscription that is automatically processed and will automatically update your service.

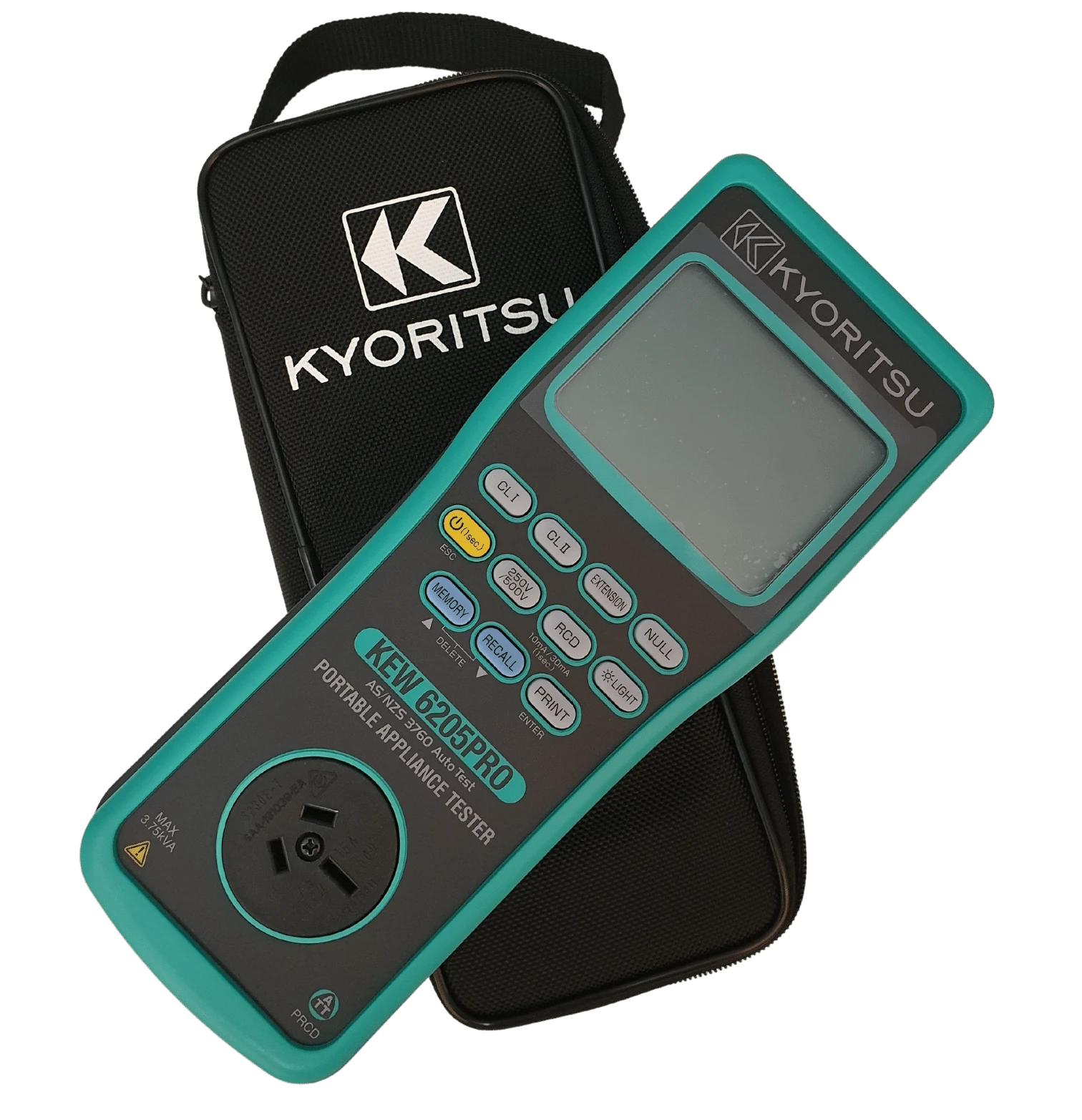

TESTER: KEW6205PRO

  • Kyoritsu KEW6205PRO tester
  • Made in Japan
  • Equipped with wireless LAN
  • wifi connection to Clevermode APP
    *Max 15A operation
    *Battery operated 6 x AA batteries
    *PASS/FAIL result complies with AS/NZS3760
    *Colour status back light
    *Class I test-Protective conductor resistance (test current 200mA DC nominal)
    -Insulation resistance test (250V or 500V)
    – Leakage current test (100-253V/50Hz)
    -Load current test (max 15A, 100-253V/50Hz)
    *Class II test
    -Insulation resistance test (250V or 500V)
    -Leakage current test (100-253V/50Hz)
    -Load current test (Max 15A, 100-253V/50Hz)
    *Extension lead test
    -protective conductor resistance (test current 200mA DC nominal)
    -Insulation resistance test (between Line/Neutral-Earth, Line-Neutral)br -Leakage current test (100-253V/50Hz)
    -Polarity test
    *RCD test (10mA & 30mA)
    *built in isolation transformer
    *all test cables and probes included

PRINTER: CLEVERMODE PRINTER

  • *Lightweight 372g *Long battery life with included battery pack
    *Rechargable with Micro USB
    *Portable with belt clip satchel
    *Quick logo changes
    *Print method Thermal Direct
    *Resolution 576 dots/line
    *Print speed max 80 mm/sec
    *Bluetooth connection
    *Dimensions 130W x 60L x 115D
    *Made in China
    *LCD display
    *Tag labels – 120/roll (50mm x 100mm tags)
    *Clevermode drivers installed

CLEVERMODE APP

  • *Annual subscription app
    *Android only
    *Requires Android v.11 or newer
    *Wi-Fi connection to KEW6205PRO tester
    *Bluetooth connection to printer
    *Records multiple users
    *Shortcut codes for appliance description, brands and notes
    *Easy logo change function
    *Scan tag barcode to upload past test details
    *Made in Australia
    *Created in 2012

Get your Clevermode test and tag machine now!
